| For Maximum density & high throughput or long term storage | ||
 |
Bay widths based on forklift clearance |
 |
|
Arm clearance based on pallet width | |
|
Vertical spacing of rack arms should be pallet height plus 6"-10" |
|
|
2 to 10 and more pallets deep based on rack layout, SKU counts and throughput |
|
|
Aisle widths to fit lift truck turning specifications | |
|
|
||

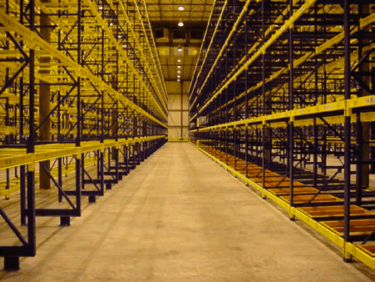

| For maximum density & medium throughput with high SKU counts | ||
|
Bays widths based on 5"-6" of space between pallets |
 |
|
Vertical rack spacing based on slope and # of pallets deep | |
|
2, 3, 4 and more pallets deep based on layout, SKU counts and throughput | |
|
Aisle widths to fit lift truck turning specifications | |
|
|
||

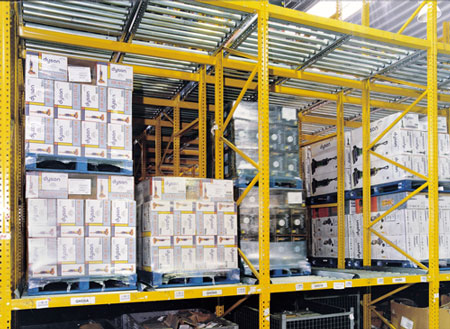

| For maximum density and "first in - first out" Product rotation | ||
|
Bay width based on pallet width plus 10"-15" - based on product overhang and stability |
 |
|
Number of pallets deep based on layout, throughput requirements and SKU counts | |
|
Vertical rack spacing based on pallet height & number of pallets deep in the system |
|
|
Aisle widths to fit lift truck turning specifications | |
|
|
||
| For storage of long on random length products such as dimensional lumber or pipe etc. | ||
|
Upright rack spacing based on product stability and need for support |
 |
|
Arm length based on load depth | |
|
Vertical rack spacing based on load height and product deflection |
|
|
Canted rack arms available to prevent loads from rolling off of arms | |
|
|
||
|
SHELVING
|
||
| For Clean operations and maximum life | ||
|
24", 30", 35", 42", 48", 54", 60", 72" wide shelves available |
 |
|
12", 18", 24", 30", 36" deep shelves available | |
|
3' to 16' heights available in 1' increments (7' standard) |
|
|
Multi story shelving units |
|
|
Enclosed shelving units | |
|
Dividers | |
|
Integral drawers & doors available for shelving | |
|
|
||
| For minimum cost per storage unit | ||
|
Shelf size should be in increments of 4' x 8' sheets of ply or particle board for minimum cost |
 |
|
3' to 16' shelf heights available in 1' increments (7' & 8' standard) | |
|
12", 18", 24", 30", 36", 42" & 48" shelf depths | |
|
48", 60", 72", 84" & 96" shelf widths | |
|
No nuts, bolts or special shelf hardware | |
|
No special tools required for shelving installation | |
|
|
||
| For clean room and food service applications | ||
|
34", 30", 36", 42", 48", 60", 72" length shelves |
 |
|
14", 18", 21", 24", 30", 36" deep shelves | |
|
63" & 74" high shelf posts |
|
|
Chrome, Zinc and Stainless Steel shelving construction |
|
|
Many available shelf accessories | |
|
|
||
| For gyms, schools and business applications | ||
|
Solid steel or perforated lockers |
 |
|
Single, double or multi tiered lockers | |
|
Padlock or integral lock types |
|
|
Locker room benches |
|
|
Sloped tops and filler panels for lockers | |
|
Custom lockers colors | |
|
Many available locker accessories | |
|
|
||
| Idaho Material Handling employs full time service and installation people to accurately install and support your project | ||
|
Insured |
 |
|
Licensed | |
|
Trained |
|
|
Experienced |
|
|
Fully outfitted service vehicles | |
|
Proper tooling for the project | |
|
|
||
| Idaho is located in an active geological region requiring UBC permitting for rack and shelving over 8'0" high. Contact your Idaho Material Handling representative for help in obtaining your permits. | |
|
|
